Graphical User Interface - Stage 4

This fourth stage of the GUI development on top of jMusic utilises dialog saving routines from the native OS and enables scores to be viewed with the jMusic ShowScore tool. This creates an environment which, apart from composing the scores, makes a quite productive working context where parameters can be changed, results seen, and files saved when a worthwhile 'take' arises.

You may even want to make use of the command: Play.midi(score), so that you can hear your compositions immediately.

Click here to view source.

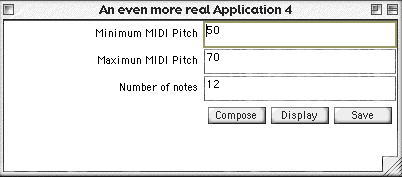

The GUI will look similar to this:

GUI

Let's have a closer look.

//==========================================================
//File: SimpleGUIApp4.java
//Function: Demonstartes GUI passing of numerical args
// to a jMusic program and window closing
// with file saving via dialog boxes,
// and display of scores in ShowScore windows.
//Author: Andrew R. Brown
//Environment JDK1.1.7
//============================================================

import java.awt.*;
import java.awt.event.*;
import jm.JMC;
import jm.music.data.*;
import jm.util.*;
import jm.music.tools.*;


public class SimpleGUI4 extends Frame implements ActionListener, WindowListener, JMC{
//--------------
// Attributes shared within the class
//-------------- TextField minPitch;
TextField maxPitch;
TextField numOfNotes;
FileDialog fd;
Score s = new Score("JMDemo - SimpleGUI_4");
Button composeBtn, showBtn, saveBtn;
//--------------
// simple main method called when the class in run
//--------------
public static void main(String[] args) {
new SimpleGUI4();
}
//--------------
// constructor
//--------------
public SimpleGUI4() {
//give the window a name

super("An even more real Application 4");
//register the closebox event
this.addWindowListener(this);
//set the layout for the Frame
this.setLayout(new GridLayout(5, 2, 5, 0));
//add the components
Label minPL = new Label("Minimum MIDI Pitch", Label.RIGHT);
this.add(minPL);

minPitch = new TextField("50");
this.add(minPitch);

Label maxPL = new Label("Maximun MIDI Pitch", Label.RIGHT);
this.add(maxPL);

maxPitch = new TextField("70");
this.add(maxPitch);

Label numNL = new Label("Number of notes", Label.RIGHT);
this.add(numNL);

numOfNotes = new TextField("12");
this.add(numOfNotes);

Label dummy = new Label("", Label.RIGHT);
this.add(dummy);

//create a panel to put the button on
// so it doesn't fill the grid space
Panel p = new Panel();

  //add the buttons
composeBtn = new Button("Compose");
composeBtn.addActionListener(this);
composeBtn.setActionCommand("Create");
p.add(composeBtn);

showBtn = new Button("Display");
showBtn.addActionListener(this);
showBtn.setActionCommand("Display");
p.add(showBtn);

saveBtn = new Button("Save");
saveBtn.addActionListener(this);
saveBtn.setActionCommand("Save");
p.add(saveBtn);

//put the panel in the frame

this.add(p);

//display the window

this.pack();
this.show();
}

//--------------

// Class Methods
//--------------

// Deal with the window closebox
public void windowClosing(WindowEvent we) {
System.exit(0);
}

//other WindowListener interface methods

//They do nothing but are required to be present
public void windowActivated(WindowEvent we) {};
public void windowClosed(WindowEvent we) {};
public void windowDeactivated(WindowEvent we) {};
public void windowIconified(WindowEvent we) {};
public void windowDeiconified(WindowEvent we) {};
public void windowOpened(WindowEvent we) {};

// Deal with the button clicks

public void actionPerformed(ActionEvent ae) {
if (ae.getSource() == composeBtn) {
makeMusic(Integer.valueOf(minPitch.getText()).intValue(),
Integer.valueOf(maxPitch.getText()).intValue(),
Integer.valueOf(numOfNotes.getText()).intValue());
}
if (ae.getSource() == saveBtn) {
fd = new FileDialog(this, "Save jMusic MIDI file as...",
FileDialog.SAVE);
fd.show();
if (fd.getFile() != null) { //catch a cancel command
//write a MIDI file to disk
Write.midi(s, fd.getDirectory()+fd.getFile());
}
if (ae.getSource() == showBtn) {
View.show(s,10,170);
}
}
//--------------
// The code that creates the jMusic score
// and writes it as MIDI and jm files.
//--------------
public void makeMusic(int minPitchVal, int maxPitchVal, int numOfNotesVal) {
s.empty(); //empty the score first
Part p = new Part("Piano", 1, 0);
Phrase phr = new Phrase(0.0);
// the serious bit :) alter as desired

for(short i=0;i<numOfNotesVal;i++){
Note n = new Note((int)((Math.random()*
Math.abs(maxPitchVal-minPitchVal))+
minPitchVal), C);
phr.addNote(n);
}
p.addPhrase(phr);
s.addPart(p);
//beep when done

Toolkit.getDefaultToolkit().beep();
}
}


To be continued...
There is nothing new in this class from earliuer GUI tutorials, it's just all in one place which makes it look long.
Take your time and work through the code slowly to see what's going on.

Importantly notice that the actionPerformed method handles events generated by all of the three buttons.
First it checks which button was the source of the event, then proceeds appropriatly.
